Post by 370steve on Feb 4, 2015 19:16:57 GMT
have just dropped the cam cover and some of the engine cases in at the coaters with the wheels and sprocket carrier. will get the sump done when i have the engine in the frame. dropped off the exhaust adapters at my mate to machine some more metal off, the new Akra has mounting sleeves that are just a little bit too big to fit inside my adapters, they will fit soon. got some wheel bearings and pro bolt bits delivered today
|
|
|
Post by gray7/11 on Feb 4, 2015 21:35:54 GMT
Really cracking on with this eh bud.. Loving the build...
|
|
|
Post by 370steve on Feb 5, 2015 11:32:24 GMT
Really cracking on with this eh bud.. Loving the build... Cheers mate, want to get it sorted and running by Easter if possible oss-popcorn
|
|
|
Post by swirl on Feb 5, 2015 12:32:08 GMT
Looks great, I had my engine soda blasted before painting Did you get it done in one piece? Probably a bit late now but yes, one piece then had the crankcases painted with two pack same as the frame, and the barrels dusted in with pj1 they need another coat but can be done in the frame, ill see if I can get a picture up later when I'm on laptop
|
|
|
Post by swirl on Feb 5, 2015 12:33:22 GMT
Oh by the way love it
|
|
|
Post by 370steve on Feb 5, 2015 22:30:49 GMT
cheers swirl, gave the engine another going over with the degreser and a stiff brush, took a lot more loose paint off, going to leave it over night then take the pressure cleaner to it tomorrow, hopefully get all the rest of the grease and loose paint off leaving it ready for some paint. cleaned off the starter motor and generator with some degreser and scotchbrite, both cleaned up very well, so they will also get some paint over the weekend.
|
|
|
Post by swirl on Feb 6, 2015 5:03:40 GMT
I polished some casing the rest of the lump is gloss black
|
|
|
Post by 370steve on Feb 8, 2015 21:51:38 GMT

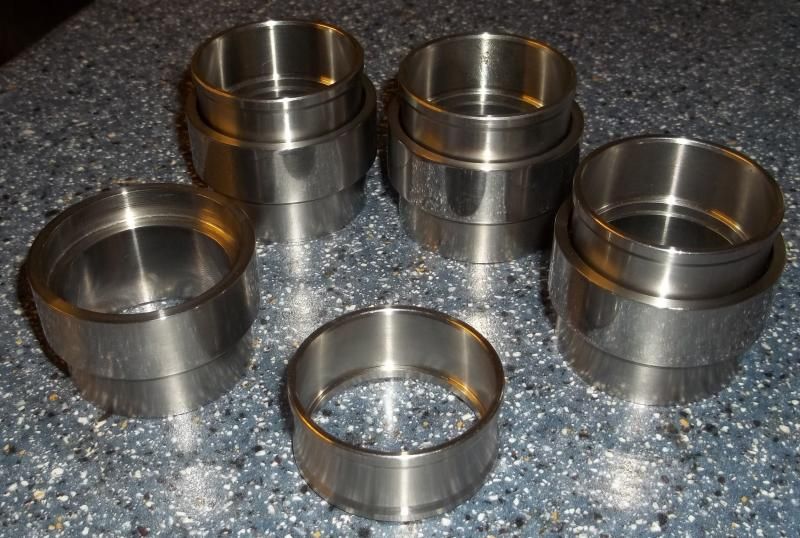

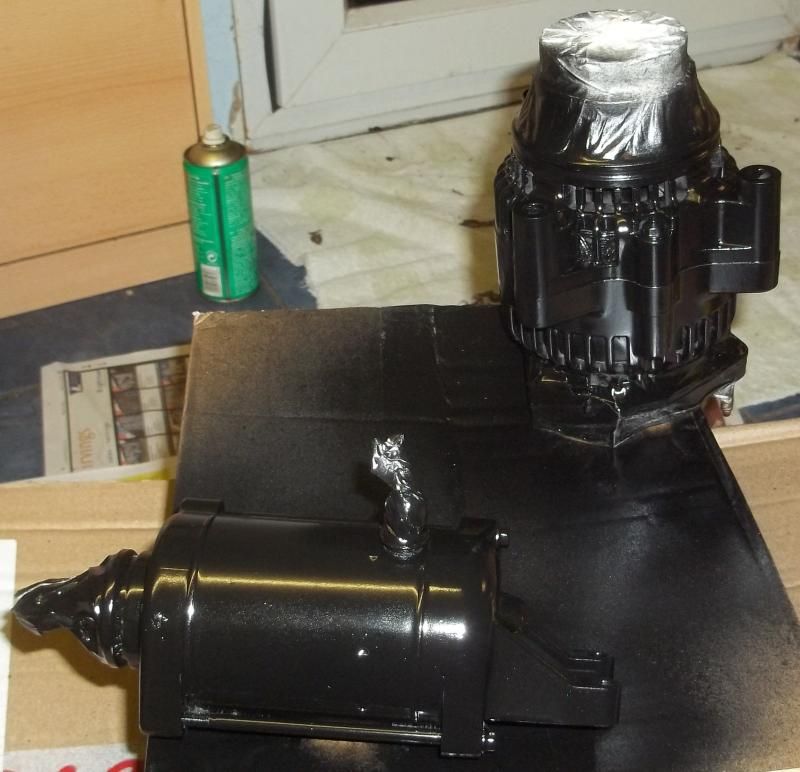

went to work on giving the gen and starter motor a lick of paint, gave the engine another rub down got the exhaust adapters back from my mate, will give them a test fit soon. tonight i ordered three cans of PJ1 to do the engine with, soon as it gets here i will get a coat of it on.
|
|
|
Post by 370steve on Feb 10, 2015 23:08:08 GMT
cleaned down the engine again with de greaser, then fitted some Pair valve blanking plates to the front of the block. went onto e-bay and got some more Ti bolts for fitting the rear sets. ordered the last of the sprocket carrier bearings and oil seals. three tins of PJ1 came through the post, so got enough to do a few coats to the engine when i get started. still waiting on a call from the powder coating place to say my wheels and bits are ready.
|
|
|
Post by 370steve on Feb 12, 2015 13:11:26 GMT
wheels and other bits that went for powder coating are now done, will be going to collect tomorrow afternoon, so pics when they are with me. will hopefully try to get the engine painted some time this weekend.
|
|
wraith
Tyrannosaurus Rex
anything can be done
Posts: 139
Bikes: Katana 2x GS1000
Reg: May 2, 2014 17:50:13 GMT
|
Post by wraith on Feb 12, 2015 20:33:25 GMT
Looking very nice.
|
|
|
Post by 370steve on Feb 13, 2015 17:05:56 GMT

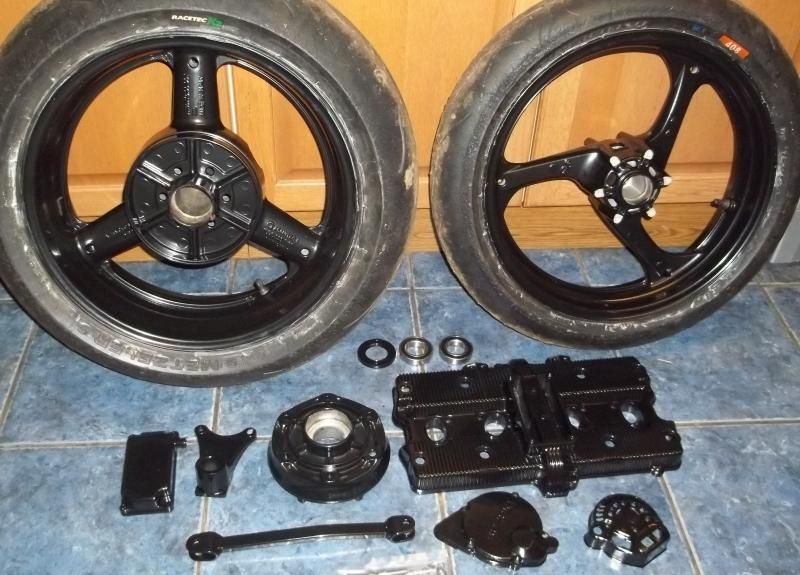

went and collected the wheels and other bits from the coaters, bearings and seals also turned up, so now i have all the bits to put the wheels back together. first thing i did on the way home was call into the tyre shop and got my tyre's re fitted, will take them back to get ballanced once bearings and seals are in place
|
|
|
Post by 370steve on Feb 13, 2015 23:03:00 GMT

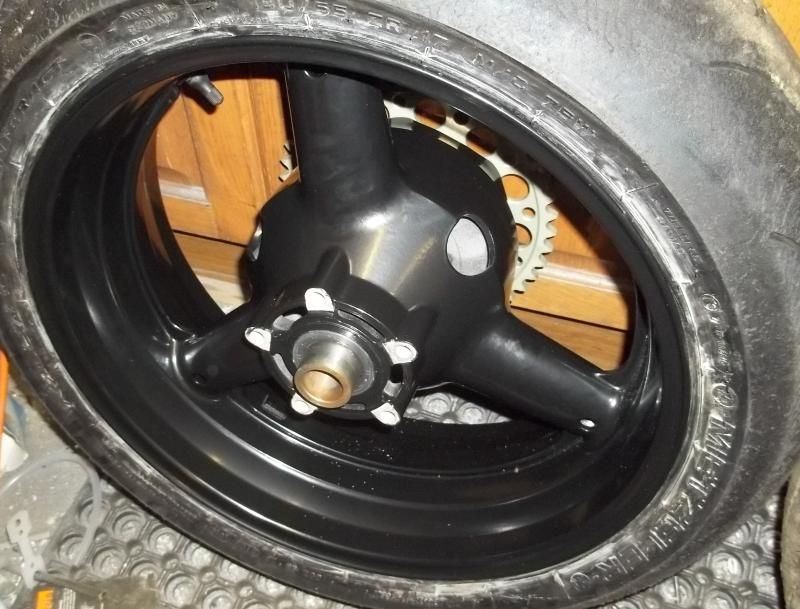

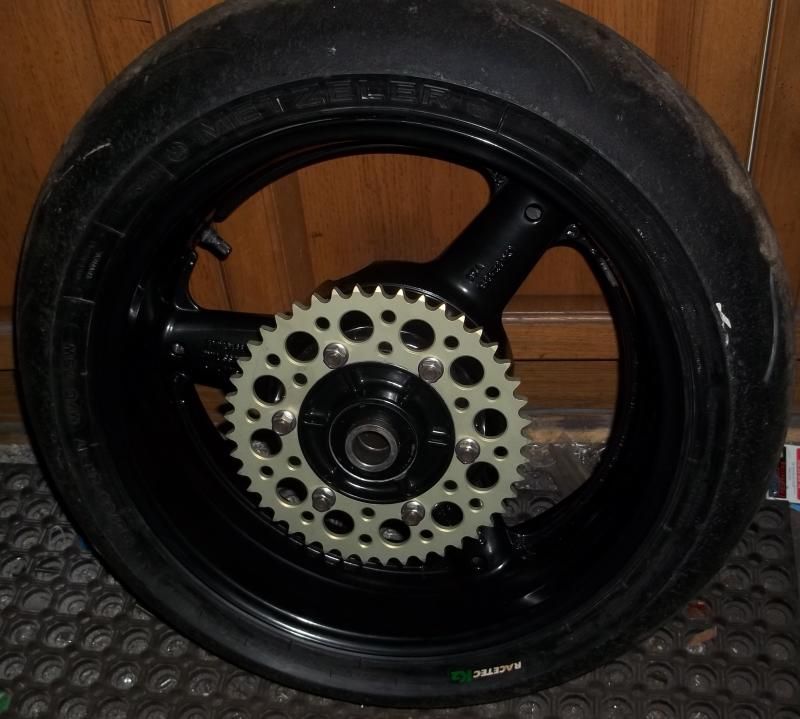

put the bearings and bits back in the wheel, fitted the new renthal sprocket and Ti nuts. need to paint the disc center then i can get it fitted.
|
|
|
Post by 370steve on Feb 15, 2015 22:54:08 GMT

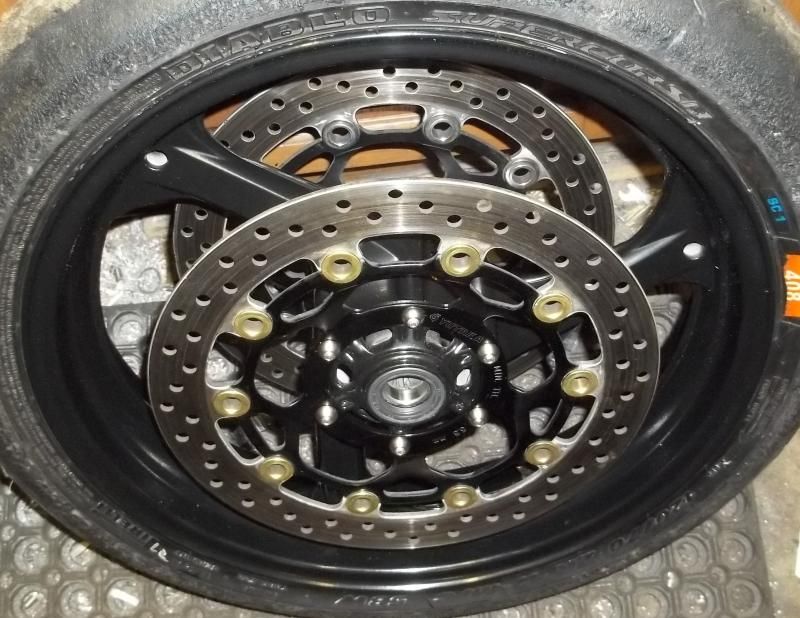

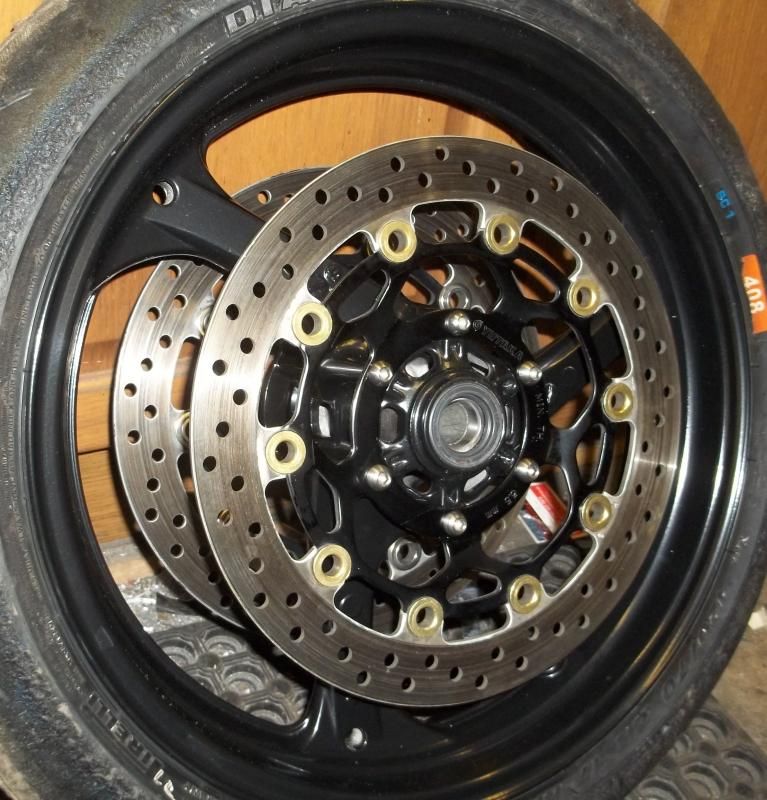

painted the disc inner's, cleaned out the disc bolt holes with a tap and inserted the bearings and moisture seals. fitted the discs with new Ti bolts. also did the rear disc, but it looks like it has been done before with a cheap paint! when i gave it a coat of PJ1 it lifted the previous paint, so i will have to do it again tomorrow.
|
|
|
Post by 370steve on Feb 16, 2015 14:57:37 GMT

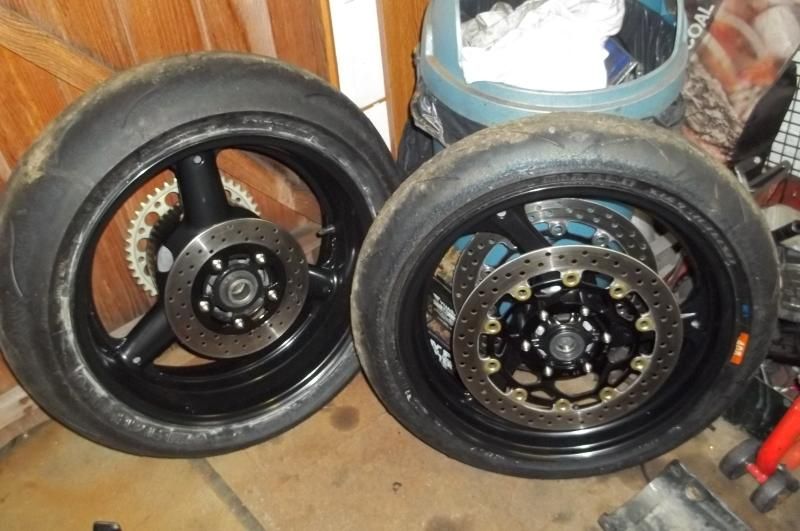

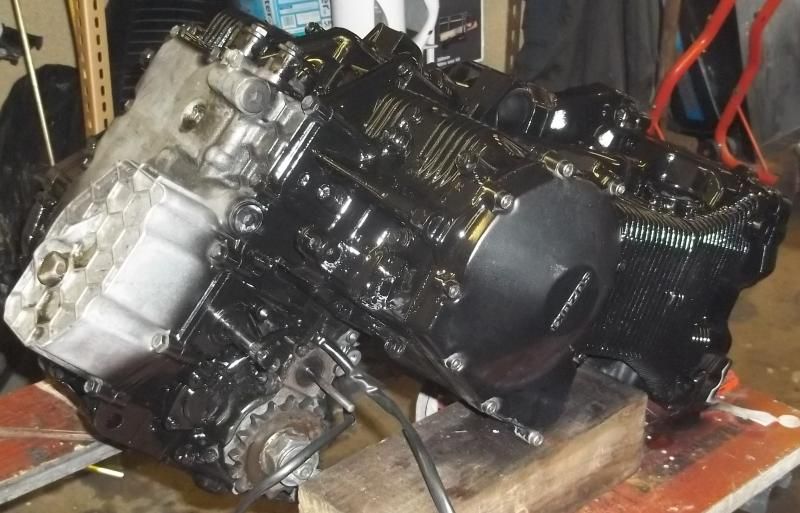

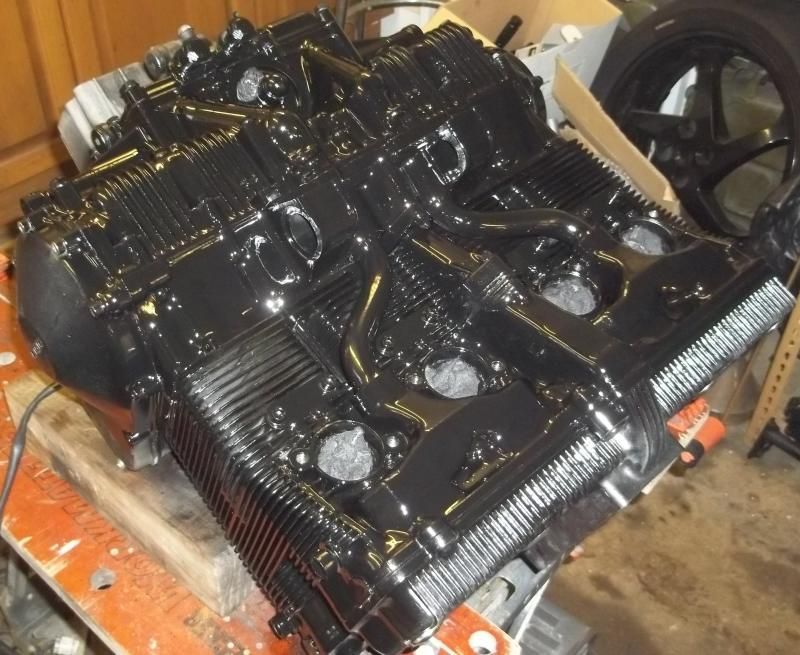

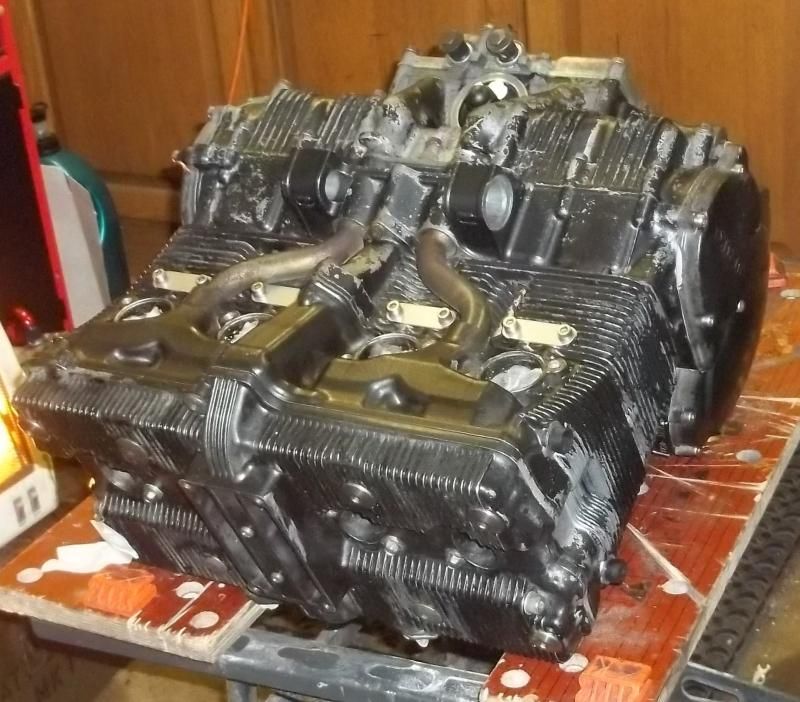

re did the rear disk, got it fitted with new Ti bolts, wheels now ready to go. got the engine up on my work mate, dropped the oil, removed the filter and gave it one last clean up and de grease ready for paint. got the first can on, you can see a bit i have missed inside the fins!! but i have been and re done that bit so it is all good now
|
|
