Post by strangewayz on Jul 6, 2013 22:27:45 GMT
that motor looks shweet ...... is the gloss black casings 2-pac Alan? The gloss black is powder coating by Triple S. AT Blackat arranged the crinkle finish on the valve cover. John at Pitstop Paint painted the cases, awesome job really helped me out, I knew that once the engine was built up not much of the red would actually be seen but i did get a few funny looks along the way... here's some pics of just the cases...
|
|
|
Post by strangewayz on Jul 6, 2013 22:31:22 GMT
good to see u back. on the old site i would drool over the pics of ur frame/engineering Hey thanks, mostly blood & sweat this end, like a sauna this time of year in my 'shed' with the welder & compressor running
|
|
spiderpig
Velociraptor
Posts: 20
Reg: Apr 23, 2013 19:23:16 GMT
|
Post by spiderpig on Jul 7, 2013 22:22:45 GMT
nice one Alan, be good to see it finished.............. Thanks & long over due it will be to ! Just trying to do the decent thing at the moment & get Porky's Katana frame back to him, I've planned some time in later this year to work on my own stuff. Fair play, Cant wait to see it finished, have been following this build for years now
|
|
|
Post by strangewayz on Jan 16, 2014 15:28:06 GMT
Actually did some work on this over xmas, finished the chain cut outs in the frame which were more difficult to do than normal... As I designed the swingarm pivot to be adjustable (spindle location can be moved up & down) there is more variation in where the chain run could be.... just meant I had to use the grinder longer to chop more out !
Also finished some of the bracing, have some pics when I have time to upload them.
Trying to get some done on this most weekends now to get it finished !!
|
|
|
Post by busaash on Jan 16, 2014 17:16:24 GMT
Always nice to see your work mr s
|
|
|
Post by captain chaos on Jan 16, 2014 18:29:12 GMT
Trying to get some done on this most weekends now to get it finished !! WTF?! You're going to actually finish a bike?
|
|
|
Post by strangewayz on Jan 17, 2014 13:51:38 GMT

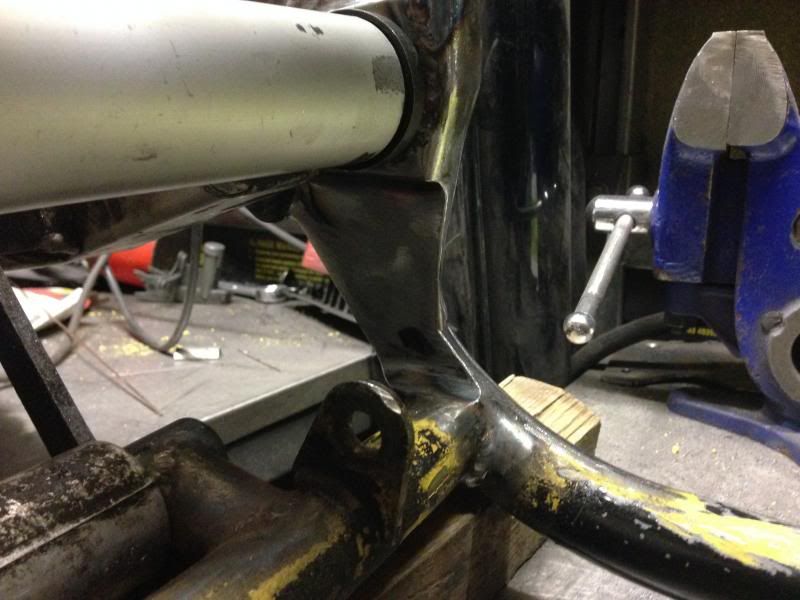

Pics of the frame tubes that I have clearanced for the chain run aka chain cuts... In some of the pics they don't look very pretty but then they rarely do at that stage in the process At this stage I had cut the frame tubes out for the chain run, used 1/4 sections top & bottom for the curves, used 1/2 moon shapes next to the curves inside the frame tubes & started to honeycomb or lay pieces of smaller diameter tube to brace between the moon shapes which does the job of internally braces the frame tubes in the area of the chain cuts. The above pics were not all finished they were just in progress pics, once all the internal bracing had been done I made & fitted the face plates. Last time I had worked on these was xmas 2012 !! & I must have been merry... as my spindle hole is slotted for adjustment the chain cuts need to be larger to allow for different positions of the swingarm & of course chain run. The picture above did not allow clearance for the lowest position of the spindle so I had to redo the bottom part of the chain cut above the spindle position, as follows. With the arm fitted in the lowest spindle position. The plate with studs welded in is for my Harris adjustable rearsets, due to the chain cuts I could not have bolts or nuts protruding so welded studs was the way to go. Hey I'm back !!
|
|
|
Post by busaash on Jan 17, 2014 14:38:14 GMT
quality as always shines thru mr s
|
|
|
Post by yoshijohnny on Jan 17, 2014 15:24:36 GMT
Is it finished yet?? is it? Come on already Al.... YJ
|
|
daz
Velociraptor
ow much do you know I'm from Yorkshire
Posts: 31
Reg: Apr 29, 2013 7:56:18 GMT
|
Post by daz on Jan 17, 2014 19:17:03 GMT
WOW...to use that much abused Americanism that is awesome
|
|
|
Post by strangewayz on Jan 30, 2014 16:14:53 GMT
|
|
wcgearhead
Velociraptor
Posts: 28
Bikes: 97' GSXR1100 with 750 top end
Reg: Jan 21, 2014 18:56:39 GMT
|
Post by wcgearhead on Jan 30, 2014 16:26:40 GMT
I love your custom welding work and I am drooling at your lathe... I would love to own one of those someday, I am planning to purchase used tig or mig machine within few months and I have machine shop at my company that I can access in my own time.
The colors on engine cases are fantastic, best way to show off your engine! Can't wait to see the finished product, keep up the good work
|
|
|
Post by strangewayz on Jan 30, 2014 18:21:35 GMT
I love your custom welding work and I am drooling at your lathe... I would love to own one of those someday, I am planning to purchase used tig or mig machine within few months and I have machine shop at my company that I can access in my own time. The colors on engine cases are fantastic, best way to show off your engine! Can't wait to see the finished product, keep up the good work Hey thanks ! The red of the cases matches the red of the paintwork on the tank etc, was trying to get a bit of a hotrod V8 look by having the cases red, etc.. Good luck with buying a welding machine, I'd say get a tig if you can !! Of course depends what you want to use if for but I could not do some of the stuff I have using only mig.
|
|
wcgearhead
Velociraptor
Posts: 28
Bikes: 97' GSXR1100 with 750 top end
Reg: Jan 21, 2014 18:56:39 GMT
|
Post by wcgearhead on Jan 30, 2014 19:40:08 GMT
I love your custom welding work and I am drooling at your lathe... I would love to own one of those someday, I am planning to purchase used tig or mig machine within few months and I have machine shop at my company that I can access in my own time. The colors on engine cases are fantastic, best way to show off your engine! Can't wait to see the finished product, keep up the good work Hey thanks ! The red of the cases matches the red of the paintwork on the tank etc, was trying to get a bit of a hotrod V8 look by having the cases red, etc.. Good luck with buying a welding machine, I'd say get a tig if you can !! Of course depends what you want to use if for but I could not do some of the stuff I have using only mig. Heck yeah I love the hot rod look in minimalistic way.. Are you going to add any more fairings like belly pan or something like that? Just figuring out what end product would actually look. Do you have front end shot, wondering what that contraption (headlight) looks like? lol. Are you going to leave that ride height or going to lower it for more badass hotrod look with thicker tires? Since you have extended swingarm, planning for any more power in the future? I would love to get TIG, it can do almost anything including custom turbo exhaust manifolds and plenums I always wanted to build I will keep an eye on tig machines, I was practicing myself with oxy torch and aluminum rod welding the bottom of soda aluminum cans together and I did it fairly well. Thanks for the advice!
|
|
|
Post by strangewayz on Jan 31, 2014 16:27:51 GMT
